4.3 Designing a project using MPLAB

4.3 Designing a project

Preparing the program for loading into microcontroller can boil down to few basic steps:

1. Designing a project
2. Writing the program
3. Converting to zero-one code comprehensible by microcontroller, i.e. compiling.

mplab_01

Opening a new project

To create a project, click on the option PROJECT and the click on PROJECT WIZARD, which will open the following window..

mplab_02

Creating a new project

Click on NEXT to continue. Next thing to do is to choose the appropriate microcontroller. In our case, it is PIC16F84A.

mplab_03

Choosing the appropriate microcontroller

Next step is defining the program language to be used. In our case it is Assembler, so we will select that option as shown on the image below.

mplab_04

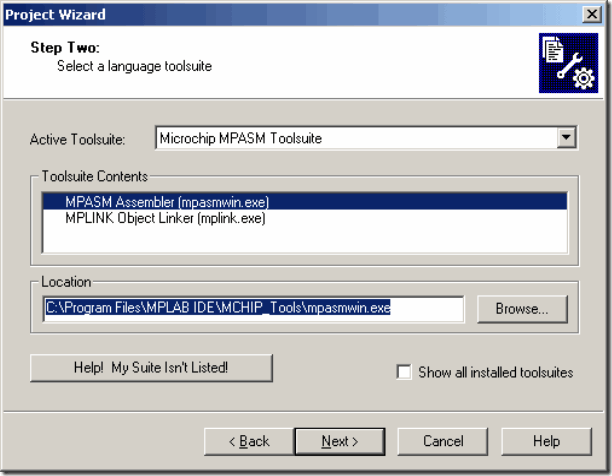

Selecting a language toolsuite

All that is left is to name our project. The name should  reflect the purpose and content of the program. Project can be stored in any folder according to your needs. It is a good thing to have that folder remind you of PIC microcontrollers; we named the folder simply PIC in the image below.

mplab_05

Naming the project

Upon naming the project, click on NEXT to open the summary window.

mplab_06

Summary containing the defined parameters

Click on FINISH to create the project. The summary window contains the project parameters.
